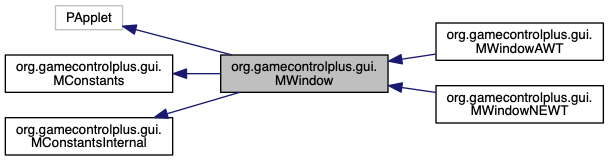

Inheritance diagram for org.gamecontrolplus.gui.MWindow:

Classes
class	WindowAdapterAWT

class	WindowAdapterNEWT

Public Member Functions
void	addData (MWinData data)

void	draw ()

void	pre ()

void	post ()

void	mouseEvent (MouseEvent event)

void	keyEvent (KeyEvent event)

void	addDrawHandler (Object obj, String methodName)

void	addPreHandler (Object obj, String methodName)

void	addMouseHandler (Object obj, String methodName)

void	addKeyHandler (Object obj, String methodName)

void	addPostHandler (Object obj, String methodName)

void	addOnCloseHandler (Object obj, String methodName)

abstract void	close ()

abstract void	forceClose ()

abstract void	setActionOnClose (int action)

void	settings ()

void	setup ()

void	performCloseAction ()

Static Public Member Functions
static MWindow	getWindow (PApplet app, String title, int px, int py, int w, int h, String renderer)

Public Attributes
MWinData	data

LinkedList< MAbstractControl >	windowControls = new LinkedList<MAbstractControl>()

LinkedList< MAbstractControl >	toRemove = new LinkedList<MAbstractControl>()

LinkedList< MAbstractControl >	toAdd = new LinkedList<MAbstractControl>()

Public Attributes inherited from org.gamecontrolplus.gui.MConstants
int	RED_SCHEME = 0

int	GREEN_SCHEME = 1

int	YELLOW_SCHEME = 2

int	PURPLE_SCHEME = 3

int	ORANGE_SCHEME = 4

int	CYAN_SCHEME = 5

int	BLUE_SCHEME = 6

int	GOLD_SCHEME = 7

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

char	HOME = java.awt.event.KeyEvent.VK_HOME

char	END = java.awt.event.KeyEvent.VK_END

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	EXIT_APP = 0x00000f01

int	CLOSE_WINDOW = 0x00000f02

int	KEEP_OPEN = 0x00000f03

int	USER_COL_SCHEME = 0x00010102

int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBAR_VERTICAL = 1

int	SCROLLBAR_HORIZONTAL = 2

int	INTEGER = 0

int	DECIMAL = 1

int	EXPONENT = 2

int	ORIENT_LEFT = -1

int	ORIENT_TRACK = 0

int	ORIENT_RIGHT = 1

int	X4 = 1

int	X8 = 2

int	PLAIN = JOptionPane.PLAIN_MESSAGE

int	ERROR = JOptionPane.ERROR_MESSAGE

int	INFO = JOptionPane.INFORMATION_MESSAGE

int	WARNING = JOptionPane.WARNING_MESSAGE

int	QUERY = JOptionPane.QUESTION_MESSAGE

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	OK = JOptionPane.OK_OPTION

int	YES = JOptionPane.YES_OPTION

int	NO = JOptionPane.NO_OPTION

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSED = JOptionPane.CLOSED_OPTION

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

Float	WIDTH_EXTENDED = new Float(1.5f)

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_REGULAR = new Float(0.0f)

Float	POSTURE_OBLIQUE = new Float(0.20f)

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_SUPER = new Integer(1)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_OFF = new Integer(0)

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_ON = new Boolean(true)

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Public Attributes inherited from org.gamecontrolplus.gui.MConstantsInternal
String	SLIDER_STYLES = "\|grey_blue\|blue18px\|green_red20px\|purple18px\|red_yellow18px\|"

String	DEFAULT_SLIDER_STYLE = "grey_blue"

int	DRAW_METHOD = 0x00000001

int	MOUSE_METHOD = 0x00000002

int	PRE_METHOD = 0x00000004

int	KEY_METHOD = 0x00000008

int	POST_METHOD = 0x00000010

int	ALL_METHOD = 0x0000001f

int	RUNTIME_ERROR = 0xf0000000

int	MISSING = 0x01000001

int	NONEXISTANT = 0x01000002

int	EXCP_IN_HANDLER = 0x81000003

int	OFF_CONTROL = 0

int	OVER_CONTROL = 1

int	PRESS_CONTROL = 2

int	DRAG_CONTROL = 3

int	TINT_FOR_ALPHA = 255

int	I_NONE = 0

int	I_TL = 1

int	I_TR = 2

int	I_CL = 4

int	I_CR = 8

int	I_INSIDE = 16

int	I_COVERED = 32

int	I_MODES = 63

int	MERGE_RUNS = 256

int	CLIP_RUN = 512

int	COMBI_MODES = 768

int[][]	grid

BasicStroke	pen_1_0 = new BasicStroke(1, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

BasicStroke	pen_2_0 = new BasicStroke(2, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

BasicStroke	pen_3_0 = new BasicStroke(3, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

BasicStroke	pen_4_0 = new BasicStroke(4, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

Protected Member Functions
	MWindow (String title, int w, int h)

void	registerMethods ()

void	unregisterMethods ()

void	addToWindow (MAbstractControl control)

void	removeFromWindow (MAbstractControl control)

abstract void	initListeners ()

Protected Attributes
int	actionOnClose = KEEP_OPEN

final int	w

final String	title

String	renderer_type

Object	preHandlerObject = null

Method	preHandlerMethod = null

String	preHandlerMethodName

Object	postHandlerObject = null

Method	postHandlerMethod = null

String	postHandlerMethodName

Object	drawHandlerObject = null

Method	drawHandlerMethod = null

String	drawHandlerMethodName

Object	keyHandlerObject = null

Method	keyHandlerMethod = null

String	keyHandlerMethodName

Object	mouseHandlerObject = null

Method	mouseHandlerMethod = null

String	mouseHandlerMethodName

Object	closeHandlerObject = null

Method	closetHandlerMethod = null

String	closetHandlerMethodName

boolean	is3D

Package Functions
void	setColorScheme (int cs)

void	setAlpha (int alpha)

Package Attributes
final int	h

Detailed Description

Objects of this class are separate windows which can be used to hold M4P GUI components or used for drawing or both combined.

A number of examples are included in the library and can be found at www.lagers.org.uk

Author: Peter Lager

Member Function Documentation

void org.gamecontrolplus.gui.MWindow.addData ( MWinData data )

To provide a unique fields for this window create a class that inherits from MWinData with public access fields. Then use this method to associate the data with this window.

Parameters

data

void org.gamecontrolplus.gui.MWindow.addDrawHandler	(	Object	obj,
		String	methodName
	)

Attempt to add the 'draw' handler method. The default event handler is a method that returns void and has two parameters PApplet and MWinData

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

void org.gamecontrolplus.gui.MWindow.addKeyHandler	(	Object	obj,
		String	methodName
	)

Attempt to add the 'key' handler method. The default event handler is a method that returns void and has three parameters GWinApplet, MWinData and a KeyEvent

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

void org.gamecontrolplus.gui.MWindow.addMouseHandler	(	Object	obj,
		String	methodName
	)

Attempt to add the 'mouse' handler method. The default event handler is a method that returns void and has three parameters GWinApplet, MWinData and a MouseEvent

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

void org.gamecontrolplus.gui.MWindow.addOnCloseHandler	(	Object	obj,
		String	methodName
	)

Attempt to create the on-close-window event handler for this MWindow. The default event handler is a method that returns void and has a single parameter of type MWindow (this will be a reference to the window that is closing)

The handler will not be called</> if the setActionOnClose flag is set to EXIT_APP
If the flag is set to CLOSE_WINDOW then the handler is called when the window is closed by clicking on the window-close-icon or using either the close or forceClose methods.
If the flag is set to KEEP_OPEN the window can only be closed using the forceClose method. In this case the handler will be called.

Parameters

obj the object to handle the on-close-window event

methodName the method to execute in the object handler class

void org.gamecontrolplus.gui.MWindow.addPostHandler	(	Object	obj,
		String	methodName
	)

Attempt to add the 'post' handler method. The default event handler is a method that returns void and has two parameters GWinApplet and MWinData

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

void org.gamecontrolplus.gui.MWindow.addPreHandler	(	Object	obj,
		String	methodName
	)

Attempt to add the 'pre' handler method. The default event handler is a method that returns void and has two parameters GWinApplet and MWinData

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

void org.gamecontrolplus.gui.MWindow.addToWindow ( MAbstractControl control )

protected

Add a control to this window, ignoring duplicates.

Parameters

control control to be added

abstract void org.gamecontrolplus.gui.MWindow.close ( )

pure virtual

This will close the window provided the action-on-close flag is CLOSE_WINDOW otherwise the window remains open.

Implemented in org.gamecontrolplus.gui.MWindowNEWT, and org.gamecontrolplus.gui.MWindowAWT.

void org.gamecontrolplus.gui.MWindow.draw ( )

Execute any draw handler for this window.

abstract void org.gamecontrolplus.gui.MWindow.forceClose ( )

pure virtual

This will close the window provided the action-on-close flag is CLOSE_WINDOW or KEEP_OPEN otherwise the window remains open.

Implemented in org.gamecontrolplus.gui.MWindowNEWT, and org.gamecontrolplus.gui.MWindowAWT.

static MWindow org.gamecontrolplus.gui.MWindow.getWindow	(	PApplet	app,
		String	title,
		int	px,
		int	py,
		int	w,
		int	h,
		String	renderer
	)

static

Factory method to create and start a new window. The renderer must be JAVA2D, P2D or P3D otherwise this method returns null.

Parameters

title	text to appear in frame title bar
px	horizontal position of top-left corner
py	vertical position of top-left corner
w	width of drawing surface
h	height of surface
r	renderer must be JAVA2D, P3D or P3D

Returns: the window created (in case the user wants its.

abstract void org.gamecontrolplus.gui.MWindow.initListeners ( )

protectedpure virtual

Set up the 'window' listeners

Implemented in org.gamecontrolplus.gui.MWindowNEWT, and org.gamecontrolplus.gui.MWindowAWT.

void org.gamecontrolplus.gui.MWindow.keyEvent ( KeyEvent event )

Execute any key event handler associated with this window and its controls

void org.gamecontrolplus.gui.MWindow.mouseEvent ( MouseEvent event )

Execute any mouse event handler associated with this window and its controls

void org.gamecontrolplus.gui.MWindow.performCloseAction ( )

This method is executed when the window closes. It will call the user defined on-close-handler method set with

void org.gamecontrolplus.gui.MWindow.post ( )

Execute any post handler associated with this window and its controls.
Add/remove any controls request by user, this is done here outside the drawing phase to prevent crashes.

void org.gamecontrolplus.gui.MWindow.pre ( )

Execute any pre handler associated with this window and its controls

void org.gamecontrolplus.gui.MWindow.registerMethods ( )

protected

Register this window for pre, draw, post, mouseEvent and keyEvent methods.

void org.gamecontrolplus.gui.MWindow.removeFromWindow ( MAbstractControl control )

protected

Remove a control to this window.

Parameters

control control to be removed

abstract void org.gamecontrolplus.gui.MWindow.setActionOnClose ( int action )

pure virtual

This sets what happens when the users attempts to close the window.
There are 3 possible actions depending on the value passed.
MWindow.KEEP_OPEN - ignore attempt to close window (default action)
MWindow.CLOSE_WINDOW - close this window, if it is the main window it causes the app to exit
MWindow.EXIT_APP - exit the app, this will cause all windows to close.

Parameters

action the required close action

Implemented in org.gamecontrolplus.gui.MWindowNEWT, and org.gamecontrolplus.gui.MWindowAWT.

void org.gamecontrolplus.gui.MWindow.setAlpha ( int alpha )

package

Set the alpha level for all controls on this window.
0 = fully transparent
255 = fully opaque
Controls are disabled when alpha gets below M4P.ALPHA_BLOCK (128)

Parameters

alpha 0-255 inclusive

void org.gamecontrolplus.gui.MWindow.setColorScheme ( int cs )

package

Set the colour scheme to be used by all controls on this window.

Parameters

cs	colour scheme e.g. M4P.GREEN_SCHEME

void org.gamecontrolplus.gui.MWindow.unregisterMethods ( )

protected

Unregister this window for pre, draw, post, mouseEvent and keyEvent methods. This method is called when the window closes.

Member Data Documentation

Object org.gamecontrolplus.gui.MWindow.closeHandlerObject = null

protected

The object to handle the window closing event

Method org.gamecontrolplus.gui.MWindow.closetHandlerMethod = null

protected

The method in closeHandlerObject to execute

String org.gamecontrolplus.gui.MWindow.closetHandlerMethodName

protected

the name of the method to handle the event

Method org.gamecontrolplus.gui.MWindow.drawHandlerMethod = null

protected

The method in drawHandlerObject to execute

String org.gamecontrolplus.gui.MWindow.drawHandlerMethodName

protected

the name of the method to handle the event

Object org.gamecontrolplus.gui.MWindow.drawHandlerObject = null

protected

The object to handle the draw event

Method org.gamecontrolplus.gui.MWindow.keyHandlerMethod = null

protected

The method in keyHandlerObject to execute

String org.gamecontrolplus.gui.MWindow.keyHandlerMethodName

protected

the name of the method to handle the event

Object org.gamecontrolplus.gui.MWindow.keyHandlerObject = null

protected

The object to handle the key event

Method org.gamecontrolplus.gui.MWindow.mouseHandlerMethod = null

protected

The method in mouseHandlerObject to execute

String org.gamecontrolplus.gui.MWindow.mouseHandlerMethodName

protected

the name of the method to handle the event

Object org.gamecontrolplus.gui.MWindow.mouseHandlerObject = null

protected

The object to handle the mouse event

Method org.gamecontrolplus.gui.MWindow.postHandlerMethod = null

protected

The method in postHandlerObject to execute

String org.gamecontrolplus.gui.MWindow.postHandlerMethodName

protected

the name of the method to handle the event

Object org.gamecontrolplus.gui.MWindow.postHandlerObject = null

protected

The object to handle the post event

Method org.gamecontrolplus.gui.MWindow.preHandlerMethod = null

protected

The method in preHandlerObject to execute

String org.gamecontrolplus.gui.MWindow.preHandlerMethodName

protected

the name of the method to handle the event

Object org.gamecontrolplus.gui.MWindow.preHandlerObject = null

protected

The object to handle the pre event

obj	the object to handle the on-close-window event
methodName	the method to execute in the object handler class

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Package Functions

Package Attributes

Detailed Description

Member Function Documentation

Member Data Documentation
