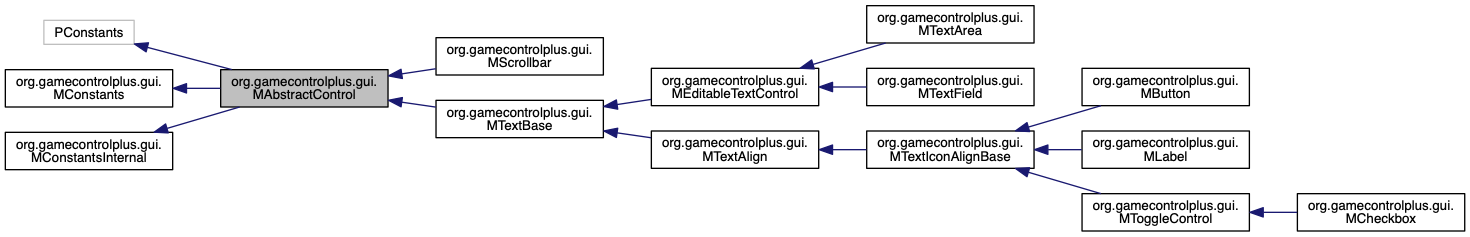

Inheritance diagram for org.gamecontrolplus.gui.MAbstractControl:

Classes
class	Z_Order

Public Member Functions
	MAbstractControl (PApplet theApplet)

	MAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

void	draw ()

void	mouseEvent (MouseEvent event)

void	keyEvent (KeyEvent e)

void	pre ()

void	post ()

void	dispose ()

void	forceBufferUpdate ()

boolean	isOver (float x, float y)

void	setLocalColorScheme (int cs)

void	setLocalColorScheme (int cs, boolean includeChildren)

int	getLocalColorScheme ()

void	setAlpha (int alpha)

void	setAlpha (int alpha, boolean includeChildren)

MAbstractControl	getParent ()

PApplet	getPApplet ()

PGraphics	getSnapshot ()

void	addEventHandler (Object obj, String methodName)

void	moveTo (float px, float py)

float	getX ()

float	getY ()

float	getCX ()

float	getCY ()

float	getWidth ()

float	getHeight ()

void	setVisible (boolean visible)

boolean	isVisible ()

void	setOpaque (boolean opaque)

boolean	isOpaque ()

boolean	isDragging ()

void	setEnabled (boolean enable)

boolean	isEnabled ()

void	setFocus (boolean focus)

boolean	hasFocus ()

void	addControl (MAbstractControl c, float x, float y, float angle)

void	addControl (MAbstractControl c, float x, float y)

void	addControl (MAbstractControl c)

void	addControls (MAbstractControl...controls)

int	getCursorOver ()

void	setCursorOver (int cursorOver)

void	markForDisposal ()

String	toString ()

Public Attributes
String	tag

int	tagNo

Public Attributes inherited from org.gamecontrolplus.gui.MConstants
int	RED_SCHEME = 0

int	GREEN_SCHEME = 1

int	YELLOW_SCHEME = 2

int	PURPLE_SCHEME = 3

int	ORANGE_SCHEME = 4

int	CYAN_SCHEME = 5

int	BLUE_SCHEME = 6

int	GOLD_SCHEME = 7

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

char	HOME = java.awt.event.KeyEvent.VK_HOME

char	END = java.awt.event.KeyEvent.VK_END

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	EXIT_APP = 0x00000f01

int	CLOSE_WINDOW = 0x00000f02

int	KEEP_OPEN = 0x00000f03

int	USER_COL_SCHEME = 0x00010102

int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBAR_VERTICAL = 1

int	SCROLLBAR_HORIZONTAL = 2

int	INTEGER = 0

int	DECIMAL = 1

int	EXPONENT = 2

int	ORIENT_LEFT = -1

int	ORIENT_TRACK = 0

int	ORIENT_RIGHT = 1

int	X4 = 1

int	X8 = 2

int	PLAIN = JOptionPane.PLAIN_MESSAGE

int	ERROR = JOptionPane.ERROR_MESSAGE

int	INFO = JOptionPane.INFORMATION_MESSAGE

int	WARNING = JOptionPane.WARNING_MESSAGE

int	QUERY = JOptionPane.QUESTION_MESSAGE

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	OK = JOptionPane.OK_OPTION

int	YES = JOptionPane.YES_OPTION

int	NO = JOptionPane.NO_OPTION

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSED = JOptionPane.CLOSED_OPTION

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

Float	WIDTH_EXTENDED = new Float(1.5f)

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_REGULAR = new Float(0.0f)

Float	POSTURE_OBLIQUE = new Float(0.20f)

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_SUPER = new Integer(1)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_OFF = new Integer(0)

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_ON = new Boolean(true)

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Public Attributes inherited from org.gamecontrolplus.gui.MConstantsInternal
String	SLIDER_STYLES = "\|grey_blue\|blue18px\|green_red20px\|purple18px\|red_yellow18px\|"

String	DEFAULT_SLIDER_STYLE = "grey_blue"

int	DRAW_METHOD = 0x00000001

int	MOUSE_METHOD = 0x00000002

int	PRE_METHOD = 0x00000004

int	KEY_METHOD = 0x00000008

int	POST_METHOD = 0x00000010

int	ALL_METHOD = 0x0000001f

int	RUNTIME_ERROR = 0xf0000000

int	MISSING = 0x01000001

int	NONEXISTANT = 0x01000002

int	EXCP_IN_HANDLER = 0x81000003

int	OFF_CONTROL = 0

int	OVER_CONTROL = 1

int	PRESS_CONTROL = 2

int	DRAG_CONTROL = 3

int	TINT_FOR_ALPHA = 255

int	I_NONE = 0

int	I_TL = 1

int	I_TR = 2

int	I_CL = 4

int	I_CR = 8

int	I_INSIDE = 16

int	I_COVERED = 32

int	I_MODES = 63

int	MERGE_RUNS = 256

int	CLIP_RUN = 512

int	COMBI_MODES = 768

int[][]	grid

BasicStroke	pen_1_0 = new BasicStroke(1, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

BasicStroke	pen_2_0 = new BasicStroke(2, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

BasicStroke	pen_3_0 = new BasicStroke(3, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

BasicStroke	pen_4_0 = new BasicStroke(4, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND)

Protected Member Functions
void	resize (float w, float h)

int	whichHotSpot (float px, float py)

int	getCurrHotSpot ()

PGraphics	getBuffer ()

void	updateBuffer ()

void	createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void	fireEvent (Object...objects)

void	setAvailable (boolean avail)

boolean	isAvailable ()

void	takeFocus ()

void	loseFocus (MAbstractControl grabber)

void	addToParent (MAbstractControl p)

AffineTransform	getTransform (AffineTransform aff)

void	calcTransformedOrigin (float px, float py)

void	setZ (int parentZ)

Static Protected Member Functions
static int	focusObjectZ ()

Protected Attributes
PApplet	winApp

int	z = Z_STICKY

boolean	dragging = false

MAbstractControl	parent = null

LinkedList< MAbstractControl >	children = null

int	localColorScheme = M4P.globalColorScheme

int[]	palette = null

Color[]	jpalette = null

int	alphaLevel = M4P.globalAlpha

float	x

float	width

float	halfWidth

float	cx

float	rotAngle

double[]	temp = new double[2]

PGraphicsJava2D	buffer = null

boolean	bufferInvalid = true

boolean	opaque = false

int	cursorOver = HAND

float	ox

Object	eventHandlerObject = null

Method	eventHandlerMethod = null

String	eventHandlerMethodName

MHotSpot[]	hotspots = null

int	currSpot = -1

Static Protected Attributes
static float	epsilon = 0.001f

Package Attributes
float	y

float	height

float	halfHeight

float	cy

float	oy

boolean	visible = true

boolean	enabled = true

boolean	available = true

int	registeredMethods = 0

Static Package Attributes
static MAbstractControl	focusIsWith = null

static MAbstractControl	controlToTakeFocus = null

static MAbstractControl	cursorIsOver

static final int	Z_PANEL = 1024

static final int	Z_STICKY = 0

static final int	Z_SLIPPY = 24

Private Member Functions
void	setPositionAndSize (float n0, float n1, float n2, float n3)

Detailed Description

Abstract base class for all GUI controls.

Author: Peter Lager

Constructor & Destructor Documentation

org.gamecontrolplus.gui.MAbstractControl.MAbstractControl ( PApplet theApplet )

Base constructor for ALL control ctors that do not have a visible UI but require access to a PApplet object.
As of V3.5 the only class using this constructor is GGroup

Parameters

theApplet

Member Function Documentation

void org.gamecontrolplus.gui.MAbstractControl.addControl	(	MAbstractControl	c,
		float	x,
		float	y,
		float	angle
	)

This will set the rotation of the control to angle overwriting any previous rotation set. Then it calculates the centre position so that the original top left corner of the control will be the position indicated by x,y with respect to the top left corner of parent.

The added control will have its position calculated relative to the centre of the parent control.

All overloaded methods call this one.

Parameters

c	the control to add.
x	the leftmost or centre position depending on controlMode
y	the topmost or centre position depending on controlMode
angle	the rotation angle (replaces any the angle specified in control)

void org.gamecontrolplus.gui.MAbstractControl.addControl	(	MAbstractControl	c,
		float	x,
		float	y
	)

Add a control at the given position with zero rotation angle.

Parameters

c	the control to add.
x	the leftmost or centre position depending on controlMode
y	the topmost or centre position depending on controlMode

void org.gamecontrolplus.gui.MAbstractControl.addControl ( MAbstractControl c )

Add a control at the position and rotation specified in the control.

Parameters

c	the control to add

void org.gamecontrolplus.gui.MAbstractControl.addEventHandler	(	Object	obj,
		String	methodName
	)

Attempt to create the default event handler for the component class. The default event handler is a method that returns void and has a single parameter of the same type as the component class generating the event and a method name specific for that class.

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

void org.gamecontrolplus.gui.MAbstractControl.addToParent ( MAbstractControl p )

protected

Changes that need to be made to child when added

Parameters

p	the parent

void org.gamecontrolplus.gui.MAbstractControl.calcTransformedOrigin	(	float	px,
		float	py
	)

protected

This method takes a position px, py and calculates the equivalent position [ox,oy] as if no transformations have taken place and the origin is the top-left corner of the control.

Parameters

px
py

void org.gamecontrolplus.gui.MAbstractControl.createEventHandler	(	Object	handlerObj,
		String	methodName,
		Class[]	param_classes,
		String[]	param_names
	)

protected

Attempt to create the default event handler for the component class. The default event handler is a method that returns void and has a single parameter of the same type as the component class generating the event and a method name specific for that class.

Parameters

handlerObj	the object to handle the event
methodName	the method to execute in the object handler class
param_classes	the parameter classes.
param_names	that names of the parameters (used for error messages only)

void org.gamecontrolplus.gui.MAbstractControl.dispose ( )

This will remove all references to this control in the library.
The user is responsible for nullifying all references to this control in their sketch code.
Once this method is called the control cannot be reused but resources used by the control remain until all references to the control are set to null.

void org.gamecontrolplus.gui.MAbstractControl.fireEvent ( Object... objects )

protected

Attempt to fire an event for this component.

The method called must have a single parameter which is the object firing the event. If the method to be called is to have different parameters then it should be overridden in the child class The method

static int org.gamecontrolplus.gui.MAbstractControl.focusObjectZ ( )

staticprotected

Get the Z order value for the object with focus.

void org.gamecontrolplus.gui.MAbstractControl.forceBufferUpdate ( )

This is for emergency use only!!!!
In this version of the library a visual controls is drawn to off-screen buffer and then drawn to the screen by copying the buffer. This means that the computationally expensive routines needed to draw the control (especially text controls) are only done when a change has been noted. This means that single changes need not trigger a full redraw to buffer.
It does mean that an error in the library code could result in the buffer not being updated after changes. If this happens then in draw() call this method on the affected control, and report it as an issue here
Thanks

int org.gamecontrolplus.gui.MAbstractControl.getCursorOver ( )

Get the shape type when the cursor is over a control

Returns: shape type

float org.gamecontrolplus.gui.MAbstractControl.getCX ( )

Get the centre x position of the control.
If the control is on a panel then the value returned is relative to the top-left corner of the panel otherwise it is relative to the sketch window display.

float org.gamecontrolplus.gui.MAbstractControl.getCY ( )

Get the centre y position of the control.
If the control is on a panel then the value returned is relative to the top-left corner of the panel otherwise it is relative to the sketch window display.

float org.gamecontrolplus.gui.MAbstractControl.getHeight ( )

Returns: the height

int org.gamecontrolplus.gui.MAbstractControl.getLocalColorScheme ( )

Get the local color scheme ID number.

PApplet org.gamecontrolplus.gui.MAbstractControl.getPApplet ( )

Get the PApplet that manages this component

MAbstractControl org.gamecontrolplus.gui.MAbstractControl.getParent ( )

Get the parent control. If null then this is a top-level component

PGraphics org.gamecontrolplus.gui.MAbstractControl.getSnapshot ( )

This method should be used sparingly since it is heavy on resources.

Returns: a PGraphics object showing current state of the control (ignoring rotation)

AffineTransform org.gamecontrolplus.gui.MAbstractControl.getTransform ( AffineTransform aff )

protected

Get an affine transformation that is the compound of all transformations including parents

Parameters

aff

float org.gamecontrolplus.gui.MAbstractControl.getWidth ( )

Returns: the width

float org.gamecontrolplus.gui.MAbstractControl.getX ( )

Get the left position of the control.
If the control is on a panel then the value returned is relative to the top-left corner of the panel otherwise it is relative to the sketch window display.

float org.gamecontrolplus.gui.MAbstractControl.getY ( )

Get the top position of the control.
If the control is on a panel then the value returned is relative to the top-left corner of the panel otherwise it is relative to the sketch window display.

boolean org.gamecontrolplus.gui.MAbstractControl.hasFocus ( )

Does this component have focus

Returns: true if this component has focus else false

boolean org.gamecontrolplus.gui.MAbstractControl.isAvailable ( )

protected

Is this control available?

boolean org.gamecontrolplus.gui.MAbstractControl.isEnabled ( )

Is this component enabled

Returns: true if the component is enabled

boolean org.gamecontrolplus.gui.MAbstractControl.isOpaque ( )

Find out if the component is opaque

Returns: true if the background is visible

boolean org.gamecontrolplus.gui.MAbstractControl.isOver	(	float	x,
		float	y
	)

Determines if a particular pixel position is over the panel.

Returns: true if the position is over.

boolean org.gamecontrolplus.gui.MAbstractControl.isVisible ( )

Returns: the component's visibility

void org.gamecontrolplus.gui.MAbstractControl.loseFocus ( MAbstractControl grabber )

protected

For most components there is nothing to do when they loose focus. Override this method in classes that need to do something when they loose focus eg TextField

void org.gamecontrolplus.gui.MAbstractControl.markForDisposal ( )

If the control is permanently no longer required then call this method to remove it and free up resources.
The variable identifier used to create this control should be set to null.
For example if you want to dispose of a button called

btnDoThis

then to remove the button use the statements

btnDoThis.dispose();


btnDoThis = null;

void org.gamecontrolplus.gui.MAbstractControl.moveTo	(	float	px,
		float	py
	)

Move the control to the given position based on the mode.

The position is not constrained to the screen area.

The current control mode determines whether we move the corner or the center of the control to px,py

Parameters

px	the horizontal position to move to
py	the vertical position to move to

void org.gamecontrolplus.gui.MAbstractControl.resize	(	float	w,
		float	h
	)

protected

Used internally to enforce minimum size constraints

Parameters

w	the new width
h	the new height

void org.gamecontrolplus.gui.MAbstractControl.setAlpha ( int alpha )

Set the transparency of the component and make it unavailable to mouse and keyboard events if below the threshold. Child controls are ignored?

Parameters

alpha value in the range 0 (transparent) to 255 (opaque)

void org.gamecontrolplus.gui.MAbstractControl.setAlpha	(	int	alpha,
		boolean	includeChildren
	)

Set the transparency of the component and make it unavailable to mouse and keyboard events if below the threshold. Child controls are ignored?
If required include the children and their children.

Parameters

alpha	value in the range 0 (transparent) to 255 (opaque)
includeChildren	if do do the same for all descendants

void org.gamecontrolplus.gui.MAbstractControl.setAvailable ( boolean avail )

protected

The availability flag is used by the library code to determine whether a control should be considered for drawing and mouse/key input.
It perits an internal control that does not affect the visible and enabled state of the control, which are set by the programmer.

If a control and its children are made unavailable it will still be drawn but it not respond to user input.

Parameters

avail

void org.gamecontrolplus.gui.MAbstractControl.setCursorOver ( int cursorOver )

Set the shape type to use when the cursor is over a control

Parameters

cursorOver the shape type to use

void org.gamecontrolplus.gui.MAbstractControl.setEnabled ( boolean enable )

Enable or disable the ability of the component to generate mouse events.
GTextField - it also controls key press events
GPanel - controls whether the panel can be moved/collapsed/expanded

Parameters

enable true to enable else false

void org.gamecontrolplus.gui.MAbstractControl.setFocus ( boolean focus )

Determines whether this component is to have focus or not

Parameters

focus

void org.gamecontrolplus.gui.MAbstractControl.setLocalColorScheme ( int cs )

Set the local colour scheme for this control. Children are ignored.

Parameters

cs	the colour scheme to use

void org.gamecontrolplus.gui.MAbstractControl.setLocalColorScheme	(	int	cs,
		boolean	includeChildren
	)

Set the local colour scheme for this control. Children are ignored. If required include the children and their children.

Parameters

cs	the colour scheme to use
includeChildren	if do do the same for all descendants

void org.gamecontrolplus.gui.MAbstractControl.setOpaque ( boolean opaque )

Determines whether to show the back colour or not. Only applies to some components

Parameters

opaque

void org.gamecontrolplus.gui.MAbstractControl.setVisible ( boolean visible )

Parameters

visible the visibility to set

void org.gamecontrolplus.gui.MAbstractControl.setZ ( int parentZ )

protected

Recursive function to set the priority of a component. This is used to determine who gets focus when components overlap on the screen e.g. when a combobo expands it might cover a button.
It is used where components have childen e.g. GCombo and GPaneln It is used when a child component is added.

Parameters

component
parentZ

void org.gamecontrolplus.gui.MAbstractControl.takeFocus ( )

protected

Give the focus to this component but only after allowing the current component with focus to release it gracefully.
Always cancel the keyFocusIsWith irrespective of the component type. If the component needs to retain keyFocus then override this method in that class e.g. GCombo

int org.gamecontrolplus.gui.MAbstractControl.whichHotSpot	(	float	px,
		float	py
	)

protected

Stop when we are over a hotspot.
Hotspots should be listed in order of importance.

Parameters

px
py

Returns: the index for the first hotspot containing px,py else return -1

Member Data Documentation

float org.gamecontrolplus.gui.MAbstractControl.cx

protected

The centre of the control

float org.gamecontrolplus.gui.MAbstractControl.halfWidth

protected

Half sizes reduces programming complexity later

boolean org.gamecontrolplus.gui.MAbstractControl.opaque = false

protected

Whether to show background or not

MAbstractControl org.gamecontrolplus.gui.MAbstractControl.parent = null

protected

Link to the parent panel (if null then it is on main window)

float org.gamecontrolplus.gui.MAbstractControl.rotAngle

protected

The angle to control is rotated (radians)

double [] org.gamecontrolplus.gui.MAbstractControl.temp = new double[2]

protected

Introduced V3 to speed up AffineTransform operations

float org.gamecontrolplus.gui.MAbstractControl.width

protected

Width and height of component in pixels for drawing background (changed form int data type in V3

float org.gamecontrolplus.gui.MAbstractControl.x

protected

Top left position of component in pixels (relative to parent or absolute if parent is null) (changed form int data type in V3

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Package Attributes

Static Package Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
