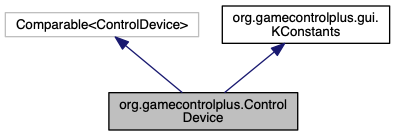

Inheritance diagram for org.gamecontrolplus.ControlDevice:

Public Member Functions
boolean	matches (Configuration config)

String	getName ()

String	getTypeName ()

int	getTypeID ()

String	getPortTypeName ()

String	toString ()

void	update ()

String	toListText (String tab)

String	toText (String tab)

String	buttonsToText (String tab)

String	slidersToText (String tab)

List< ControlInput >	getInputs ()

int	getNumberOfSliders ()

ControlSlider	getSlider (final int i_sliderNumb)

ControlSlider	getSlider (final String i_sliderName)

void	setTolerance (final float i_tolerance)

int	getNumberOfButtons ()

ControlButton	getButton (final int i_buttonNumb)

ControlButton	getButton (final String i_buttonName)

ControlHat	getHat (final int i_hatNumb)

ControlHat	getHat (final String i_hatName)

void	open ()

void	close ()

int	getNumberOfRumblers ()

void	rumble (final float i_intensity, final int i_id)

void	rumble (final float i_intensity)

void	plug (final Object i_object, final String i_methodName, final int i_eventType, final int i_input)

void	plug (final String i_methodName, final int i_eventType, final int i_input)

void	plug (final Object i_object, final String i_methodName, final int i_eventType, final String i_input)

void	plug (final String i_methodName, final int i_eventType, final String i_input)

boolean	equals (Object d)

int	compareTo (ControlDevice d)

Public Attributes
boolean	available = true

Public Attributes inherited from org.gamecontrolplus.gui.KConstants
final float	INPUT_UI_HEIGHT = 24

final float	DESC_UI_HEIGHT = 30

final float	ELEMENT_UI_GAP = 4

final float	INPUT_UI_LENGTH = 220

final float	DESC_UI_LENGTH = 300

final float	TEXTFIELD_GAP = 4

final float	INICATOR_D = 12

final float	CONNECTOR_SIZE_R = 10

final float	CONNECTOR_SIZE_R2 = CONNECTOR_SIZE_R * CONNECTOR_SIZE_R

final float	CONNECTOR_SIZE_D = 2 * CONNECTOR_SIZE_R

final int	INPUT = 0x01

final int	DESC = 0x02

final float	FONT_SIZE = 12

final int	PANEL_WIDTH = 320

final int	PANEL_HEIGHT = 280

final int	UI_BUTTON = 0x01

final int	UI_COOLIEHAT = 0x02

final int	UI_SLIDER = 0x03

final int	UI_DESCRIPTOR = 0x04

final int[]	UI_E_BACK = new int[] { 0, 0xFFFFD0D0, 0xFFD0FFD0, 0xFFD0D0FF, 0xFFFFD0D0 }

final int	BACKGROUND = 0xFFF0FFF0

final int	PANEL = 0xFF208020

final int	BORDER = 0xFF4040A0

final int	CONNECTION = 0xFF8080A0

final int	HIGHLIGHT = 0xFFFF40FF

final int	NAME_AREA = 0xFFC8C8FF

final int	CONNECTOR = 0xFFFFC0FF

final int	TEXTFILL = 0xFF000080

final int	PRESSED = 0xFFFF3030

final int	RELEASED = 0xFF802020

final int	SLIDER_CURSOR = 0xFFFF4040

int	WORKING = 0

int	CANCELLED = 1

int	FINISHED = 2

int	NOT_OVER = 0x0000

int	OVER_CONNECTOR = 0x0100

int	ON_PRESS = 0

int	ON_RELEASE = 1

int	WHILE_PRESS = 2

int	BUTTON_TYPE = 1

int	HAT_TYPE = 2

int	SLIDER_TYPE = 3

String	SEPARATOR = "\t"

Protected Member Functions
void	updateRelative ()

Package Functions
	ControlDevice (final Controller i_controller, final PApplet i_parent)

Private Member Functions
void	setupDevice ()

Private Attributes
final Controller	controller

final PApplet	parent

final List< ControlSlider >	sliders = new ArrayList<ControlSlider>()

final List< ControlButton >	buttons = new ArrayList<ControlButton>()

Rumbler[]	rumblers = new Rumbler[0]

final Map< String, ControlInput >	inputNameMap

final List< ControlInput >	inputs = new ArrayList<ControlInput>()

boolean	open = false

final String	name

Detailed Description

The device class is for the communication with your input devices. A device consists of buttons and sliders, sliders can be grouped to sticks.

To react on button events you can plug methods, that are called when a button is pressed, released or while a button is pressed.

Author: Peter Lager & Christian Riekoff

Constructor & Destructor Documentation

org.gamecontrolplus.ControlDevice.ControlDevice	(	final Controller	i_controller,
		final PApplet	i_parent
	)

package

Initializes a new device by the given Controller

Parameters

i_controller

Member Function Documentation

String org.gamecontrolplus.ControlDevice.buttonsToText ( String tab )

Get a text description of the buttons on this device

Parameters

tab

void org.gamecontrolplus.ControlDevice.close ( )

Use this method to close a device. A closed device does not to be updated to get values.

ControlButton org.gamecontrolplus.ControlDevice.getButton ( final int i_buttonNumb )

Use this method to get a Button based on its position in the list of inputs. Use the buttonsToText method to see what buttons are available for a device.

Parameters

i_buttonName int, the number of the button to return

Returns: ControlButton, the Button corresponding to the given number

ControlButton org.gamecontrolplus.ControlDevice.getButton ( final String i_buttonName )

Use this method to get a Button based on its name. The name could be the system-dependent name or the name specified in a device configuration. Use the buttonsToText method to see what buttons are available for a device.

Parameters

i_buttonName String, the name of the button to return

Returns: ControlButton, the Button corresponding to the given name or null if not found.

ControlHat org.gamecontrolplus.ControlDevice.getHat ( final int i_hatNumb )

Use this method to get a Hat based on its position in the list of inputs. Use the buttonsToText method to see what hats are available for a device.

Parameters

i_buttonName String, the name of the button to return

Returns: ControlHat, the Hat corresponding to the given name or null if not found.

ControlHat org.gamecontrolplus.ControlDevice.getHat ( final String i_hatName )

Use this method to get a Hat based on its name. The name could be the system-dependent name or the name specified in a device configuration. Use the buttonsToText method to see what hats are available for a device.

Parameters

i_hatName String, the name of the hat to return

Returns: ControlHat, the Hat corresponding to the given name or null if not found.

List<ControlInput> org.gamecontrolplus.ControlDevice.getInputs ( )

Get a list of all inputs for this device

int org.gamecontrolplus.ControlDevice.getNumberOfButtons ( )

Returns the number of buttons of the device.

Returns: int, the number of buttons available for a device

int org.gamecontrolplus.ControlDevice.getNumberOfSliders ( )

Returns the number of sliders of the device.

Returns: the number of sliders on this device

String org.gamecontrolplus.ControlDevice.getPortTypeName ( )

Get the name of the connection type e.g. USB, network etc.

ControlSlider org.gamecontrolplus.ControlDevice.getSlider ( final int i_sliderNumb )

Use this method to get a Slider based on its position in the list of inputs. Use printSliders to see what sliders are available for a device.

Parameters

i_sliderNumb int, the number of the slider to return

Returns: ControllSlider, the Slider corresponding to the given number

ControlSlider org.gamecontrolplus.ControlDevice.getSlider ( final String i_sliderName )

Use this method to get a Slider based on its name. The name could be the system-dependent name or the name specified in a device configuration. Use printSliders to see what sliders are available for a device.

Parameters

i_sliderName String, the name of the slider to return

Returns: ControllSlider, the Slider corresponding to the given name or null if not found.

int org.gamecontrolplus.ControlDevice.getTypeID ( )

Get the name for the type of device e.g. Gamepad, Mouse

Returns

String org.gamecontrolplus.ControlDevice.getTypeName ( )

Get the name for the type of device e.g. Gamepad, Mouse

Returns

boolean org.gamecontrolplus.ControlDevice.matches ( Configuration config )

If available will attempt to match this device to the required configuration. If a match occurs then

the user defined keys are added to the device
the config count is incremented
the device is marked as unavailable for future matches
the device is opened

Parameters

config

Returns

void org.gamecontrolplus.ControlDevice.open ( )

Use this method to open a device. A device is automatically opened by default, so you only need to call this when you have closed it with the close method.

void org.gamecontrolplus.ControlDevice.plug	(	final Object	i_object,
		final String	i_methodName,
		final int	i_eventType,
		final int	i_input
	)

Plug is a handy method to handle incoming button events. To create a plug you have to implement a method that reacts on the events. To plug a method you need to give a device the method name, the event type you want to react on and the button. If your method is inside a class you have to give the plug a reference to it.

Parameters

i_object	Object: the object with the method to plug
i_methodName	String: the name of the method that has to be plugged
i_eventType	constant: can be ControllIO.ON_PRESS, ControllIO.ON_RELEASE or ControllIO.WHILE_PRESS
i_input	int: the number of the button that triggers the plug

void org.gamecontrolplus.ControlDevice.plug	(	final String	i_methodName,
		final int	i_eventType,
		final int	i_input
	)

Plug is a handy method to handle incoming button events. To create a plug you have to implement a method that reacts on the events. To plug a method you need to give a device the method name, the event type you want to react on and the button. If your method is inside a class you have to give the plug a reference to it.

Parameters

i_methodName	String: the name of the method that has to be plugged
i_eventType	constant: can be ControllIO.ON_PRESS, ControllIO.ON_RELEASE or ControllIO.WHILE_PRESS
i_input	int: the number of the button that triggers the plug

void org.gamecontrolplus.ControlDevice.plug	(	final Object	i_object,
		final String	i_methodName,
		final int	i_eventType,
		final String	i_input
	)

Plug is a handy method to handle incoming button events. To create a plug you have to implement a method that reacts on the events. To plug a method you need to give a device the method name, the event type you want to react on and the button. If your method is inside a class you have to give the plug a reference to it.

Parameters

i_object	Object: the object with the method to plug
i_methodName	String: the name of the method that has to be plugged
i_eventType	constant: can be ControllIO.ON_PRESS, ControllIO.ON_RELEASE or ControllIO.WHILE_PRESS
i_input	String: the name of the button that triggers the plug

void org.gamecontrolplus.ControlDevice.plug	(	final String	i_methodName,
		final int	i_eventType,
		final String	i_input
	)

Plug is a handy method to handle incoming button events. To create a plug you have to implement a method that reacts on the events. To plug a method you need to give a device the method name, the event type you want to react on and the button. If your method is inside a class you have to give the plug a reference to it.

Parameters

i_methodName	String: the name of the method that has to be plugged
i_eventType	constant: can be ControllIO.ON_PRESS, ControllIO.ON_RELEASE or ControllIO.WHILE_PRESS
i_input	String: the name of the button that triggers the plug

void org.gamecontrolplus.ControlDevice.setTolerance ( final float i_tolerance )

Tolerance is minimum under which the input is set to zero. Use this method to set the tolerance for all sliders of the device.

Parameters

i_tolerance float, the new tolerance for the device

void org.gamecontrolplus.ControlDevice.setupDevice ( )

private

Loads the available Sliders, Sticks and Buttons for a device

String org.gamecontrolplus.ControlDevice.slidersToText ( String tab )

Get a text description of the sliders on this device

Parameters

tab

String org.gamecontrolplus.ControlDevice.toListText ( String tab )

Get a short text description for this device

Parameters

tab

String org.gamecontrolplus.ControlDevice.toString ( )

Returns the String representation of a device

Returns: String, the String representation of a device

String org.gamecontrolplus.ControlDevice.toText ( String tab )

Get a detailed text description for this device

Parameters

tab

void org.gamecontrolplus.ControlDevice.update ( )

This method is called on every thread loop

void org.gamecontrolplus.ControlDevice.updateRelative ( )

protected

This method is called before each frame to update the controller values

Member Data Documentation

boolean org.gamecontrolplus.ControlDevice.available = true

This is used to show the device is available for selection by matching with a configurations file.

final List<ControlButton> org.gamecontrolplus.ControlDevice.buttons = new ArrayList<ControlButton>()

private

list containing the buttons on the device

final Controller org.gamecontrolplus.ControlDevice.controller

private

The JInput controller instance for this device

final Map<String, ControlInput> org.gamecontrolplus.ControlDevice.inputNameMap

private

Initial value:

=

new HashMap<String, ControlInput>()

to map the device generated input names and Controller inputs

final List<ControlInput> org.gamecontrolplus.ControlDevice.inputs = new ArrayList<ControlInput>()

private

A List with the buttons and sliders available by the device

final String org.gamecontrolplus.ControlDevice.name

private

The name of the device.

boolean org.gamecontrolplus.ControlDevice.open = false

private

true if the device has been opened. Only opened devices are updated before a frame.

final PApplet org.gamecontrolplus.ControlDevice.parent

private

Instance to the PApplet where gcp is running

Rumbler [] org.gamecontrolplus.ControlDevice.rumblers = new Rumbler[0]

private

list containing the rumblers on the device

final List<ControlSlider> org.gamecontrolplus.ControlDevice.sliders = new ArrayList<ControlSlider>()

private

list containing the sliders on the device

Public Member Functions

Public Attributes

Protected Member Functions

Package Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
