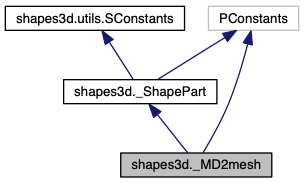

Inheritance diagram for shapes3d._MD2mesh:

Public Member Functions
	_MD2mesh (int ppCol, MD2_Data mdata)

void	draw (PGraphics pg)

void	drawPickBuffer (PGraphics pg)

void	update (float delta_t)

float	getAnimPos ()

void	setState (int stateNo)

void	setState (int stateNo, boolean repeat)

MD2_AnimState	getAnimState (int stateNo)

MD2_AnimState[]	getAnimStates ()

void	orientModel (Orientation orientation)

void	centreModel ()

void	centreModel (PVector offset)

void	scaleModel (float scale)

PVector	getModOffset ()

PVector	getModSize ()

MD2_Data	getData ()

String	toString ()

Public Member Functions inherited from shapes3d._ShapePart
void	texture (PImage image)

void	movie (PApplet pApplet, PImage movie)

_ShapePart	uv (float u0, float u1, float v0, float v1)

_ShapePart	mesh (int nbrColSlices, int nbrRowSlices)

_ShapePart	uvt (TransformUV transformer)

_ShapePart	uvwrap (int wrap)

void	visible (boolean visible)

_ShapePart	fill (int fillColor)

_ShapePart	stroke (int col)

_ShapePart	strokeWeight (float weight)

_ShapePart	drawMode (int mode)

boolean	isVisible ()

float	strokeWeight ()

int	fill ()

int	stroke ()

int	drawMode ()

PImage	texture ()

Protected Member Functions
_ShapePart	applyUV ()

Protected Member Functions inherited from shapes3d._ShapePart
	_ShapePart (int ppCol)

	_ShapePart (int ppCol, String tag)

void	drawWhat ()

boolean	isValidDrawMode (int mode)

Protected Attributes
PVector	pos = new PVector(0,0,0)

PVector	rot = new PVector(0,0,0)

int	pickColor

boolean	pickable = false

PGraphics	on_canvas = null

PMatrix	on_canvas_matrix

Protected Attributes inherited from shapes3d._ShapePart
int	fillColor = BLUE

int	strokeColor = YELLOW

float	strokeWeight = 2.0f

int	drawMode = SOLID \| WIRE

boolean	visible = true

boolean	useSolid

boolean	useWire

boolean	useTexture

PImage	skin = null

TransformUV	transformer = TransformUV.ROT0

float	u0 = 0

float	u1 = 1

float	v0 = 0

float	v1 = 1

int	wrap = REPEAT

final int	partPickColor

Additional Inherited Members
Public Attributes inherited from shapes3d._ShapePart
String	tag

Public Attributes inherited from shapes3d.utils.SConstants
int	WIRE = 0x00000011

int	SOLID = 0x00000012

int	TEXTURE = 0x00000014

int	DRAWALL = WIRE \| SOLID \| TEXTURE

int	WHITE = 0xFFFFFFFF

int	BLACK = 0xFF000000

int	GREY = 0xFFC0C0C0

int	RED = 0xFFFF0000

int	GREEN = 0xFF00FF00

int	BLUE = 0xFF0000FF

int	YELLOW = 0xFFFFFF00

int	PURPLE = 0xFFFF00FF

int	CYAN = 0xFF00FFFF

int	ORANGE = 0xFFFFC000

int	CW = 1

int	CCW = 2

int	ALL = 0b11111111

int	BOTTOM = 0b00000001

int	TOP = 0b00000010

int	FRONT = 0b00000100

int	BACK = 0b00001000

int	LEFT = 0b00010000

int	RIGHT = 0b00100000

int	BODY = 0b00000001

int	END0 = 0b00000010

int	END1 = 0b00000100

float	ONE_DEG_T = (float) (Math.PI / 180.0)

PathOrthogonal	ORTHO_X = new PathOrthogonal.PathNormalX()

PathOrthogonal	ORTHO_Y = new PathOrthogonal.PathNormalY()

PathOrthogonal	ORTHO_Z = new PathOrthogonal.PathNormalZ()

PathOrthogonal	ORTHO_A = new PathOrthogonal.PathNormalAMC()

TransformUV	ROT_0 = TransformUV.ROT0

TransformUV	ROT_90 = TransformUV.ROT90

TransformUV	ROT_180 = TransformUV.ROT180

TransformUV	ROT_270 = TransformUV.ROT270

TransformUV	FLIP_H = TransformUV.FLIPH

TransformUV	FLIP_V = TransformUV.FLIPV

Rotation	ROTATION_ZERO = new Rotation()

int	T_BOX = 0x1001

int	T_DOME = 0x1002

int	T_CONE = 0x1003

int	T_ELLIPSOID = 0x1004

int	T_EXTRUSION = 0x1005

int	T_LATHESTOCK = 0x1006

int	T_MD2 = 0x1007

int	T_SKYBOX = 0x1008

int	T_SKYDOME = 0x1009

int	T_TERRAIN = 0x100A

int	T_TUBE = 0x100B

int	C_LATHESURFACE = 0x2001

int	C_OVAL = 0x2002

int	C_POLYGON = 0x2003

int	P_BCURVE2D = 0x3001

int	P_BCURVE3D = 0x3002

int	P_BSPLINE2D = 0x3003

int	P_BSPLINE3D = 0x3004

int	P_LINEAR = 0x3005

int	P_LISSAJOUS = 0x3006

int	P_RING = 0x3007

int	P_SPIRAL = 0x3008

Detailed Description

This class is responsible for managing the animation and rendering of the MD2 model

Author: Peter Lager

Member Function Documentation

_ShapePart shapes3d._MD2mesh.applyUV ( )

protectedvirtual

Returns: this shape part

Implements shapes3d._ShapePart.

void shapes3d._MD2mesh.centreModel ( )

Centers the model so it evenly spaced over (0,0,0) Note: this will change all the XYZ points in the model

void shapes3d._MD2mesh.centreModel ( PVector offset )

Centers the model so it evenly spaced over a given offset useful if we have 2 linked models. Note: this will change all the XYZ points in the model

Parameters

offset the distance to move vertices

void shapes3d._MD2mesh.draw ( PGraphics pg )

virtual

Draw this part on to a graphics context

Parameters

pg	the graphics context

Implements shapes3d._ShapePart.

void shapes3d._MD2mesh.drawPickBuffer ( PGraphics pg )

virtual

Draw this part on to a graphics context

Parameters

pg	the pick buffer graphics context

Implements shapes3d._ShapePart.

float shapes3d._MD2mesh.getAnimPos ( )

Gets the current animation position. Integer part is frame number and fractional part is interpolation value to next frame.

Returns

MD2_AnimState shapes3d._MD2mesh.getAnimState ( int stateNo )

get a particular animation state

Parameters

stateNo

Returns

MD2_AnimState [] shapes3d._MD2mesh.getAnimStates ( )

Allows user to get and use any animation states available

Returns

PVector shapes3d._MD2mesh.getModOffset ( )

Get the offset of the model center from (0,0,0)

Returns: distance of model center from [0,0,0]

PVector shapes3d._MD2mesh.getModSize ( )

Get the size of the model

Returns: the model's width, height and depth

void shapes3d._MD2mesh.orientModel ( Orientation orientation )

Centers the model so it evenly spaced over (0,0,0) Note: this will change all the XYZ points in the model

void shapes3d._MD2mesh.scaleModel ( float scale )

Scales the model Note: this will change all the XYZ points in the model

Parameters

scale the scale factor to apply to vertices

void shapes3d._MD2mesh.setState ( int stateNo )

Set the model state to be rendered animation is repeated for ever.

Parameters

stateNo

void shapes3d._MD2mesh.setState	(	int	stateNo,
		boolean	repeat
	)

Set the model state to be rendered

Parameters

stateNo
true	= repeat animation is repeated for ever

String shapes3d._MD2mesh.toString ( )

Display the model statistics and memory usage

Returns: textual description of model data

void shapes3d._MD2mesh.update ( float delta_t )

Update the interpolation value so that the model is animated.

Parameters

delta_t the increment to be applied to the interpolation value

The documentation for this class was generated from the following file:

/Users/peter/git/shapes3d-repos/Shapes 3D/src/shapes3d/_MD2mesh.java
