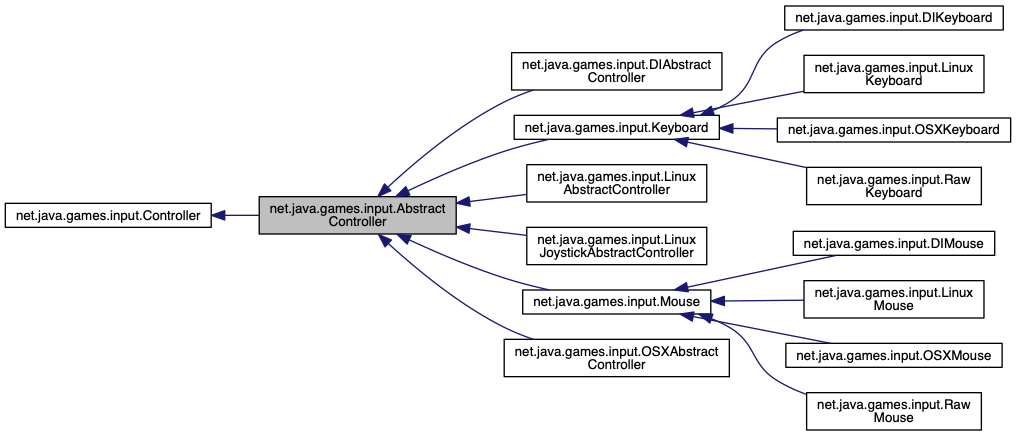

Inheritance diagram for net.java.games.input.AbstractController:

Public Member Functions
final Controller[]	getControllers ()

final Component[]	getComponents ()

final Component	getComponent (Component.Identifier id)

final Rumbler[]	getRumblers ()

PortType	getPortType ()

int	getPortNumber ()

final String	getName ()

String	toString ()

Type	getType ()

final void	setEventQueueSize (int size)

final EventQueue	getEventQueue ()

synchronized boolean	poll ()

Protected Member Functions
	AbstractController (String name, Component[] components, Controller[] children, Rumbler[] rumblers)

void	setDeviceEventQueueSize (int size) throws IOException

abstract boolean	getNextDeviceEvent (Event event) throws IOException

void	pollDevice () throws IOException

Static Package Attributes
static final int	EVENT_QUEUE_DEPTH = 32

Private Attributes
final String	name

final Component[]	components

final Controller[]	children

final Rumbler[]	rumblers

final Map	id_to_components = new HashMap()

EventQueue	event_queue = new EventQueue(EVENT_QUEUE_DEPTH)

Static Private Attributes
static final Event	event = new Event()

Detailed Description

An AbstractController is a skeleton implementation of a controller that contains a fixed number of axes, controllers, and rumblers.

Constructor & Destructor Documentation

net.java.games.input.AbstractController.AbstractController	(	String	name,
		Component[]	components,
		Controller[]	children,
		Rumbler[]	rumblers
	)

protected

Protected constructor for a controller containing the specified axes, child controllers, and rumblers

Parameters

name	name for the controller
components	components for the controller
children	child controllers for the controller
rumblers	rumblers for the controller

Member Function Documentation

final Component net.java.games.input.AbstractController.getComponent ( Component.Identifier id )

virtual

Returns a single component based on its identifier, or null if no component with the specified type could be found.

Implements net.java.games.input.Controller.

final Component [] net.java.games.input.AbstractController.getComponents ( )

virtual

Returns the components on this controller, in order of assignment priority. For example, the button controller on a mouse returns an array containing the primary or leftmost mouse button, followed by the secondary or rightmost mouse button (if present), followed by the middle mouse button (if present). The array returned is an empty array if this controller contains no components (such as a logical grouping of child controllers).

Implements net.java.games.input.Controller.

final Controller [] net.java.games.input.AbstractController.getControllers ( )

Returns the controllers connected to make up this controller, or an empty array if this controller contains no child controllers. The objects in the array are returned in order of assignment priority (primary stick, secondary buttons, etc.).

final EventQueue net.java.games.input.AbstractController.getEventQueue ( )

virtual

Get the device event queue

Implements net.java.games.input.Controller.

final String net.java.games.input.AbstractController.getName ( )

virtual

Returns a human-readable name for this Controller.

Implements net.java.games.input.Controller.

int net.java.games.input.AbstractController.getPortNumber ( )

virtual

Returns the zero-based port number for this Controller.
