g4p_controls.GWindow Class Referenceabstract

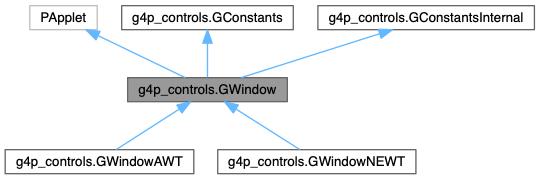

Inheritance diagram for g4p_controls.GWindow:

Classes

class  GCloseNotifier

class  WindowAdapterAWT

class  WindowAdapterNEWT


Public Member Functions

void addData (GWinData data)

void addDrawHandler (Object obj, String methodName)

void addKeyHandler (Object obj, String methodName)

void addMouseHandler (Object obj, String methodName)

void addOnCloseHandler (Object obj, String methodName)

void addPostHandler (Object obj, String methodName)

void addPreHandler (Object obj, String methodName)

void close ()

void draw ()

void forceClose ()

abstract PVector getPosition (PVector pos)

abstract String getTitle ()

abstract boolean isVisible ()

void keyEvent (KeyEvent event)

void mouseEvent (MouseEvent event)

void performCloseAction ()

void post ()

void pre ()

abstract void setActionOnClose (int action)

abstract void setAlwaysOnTop (boolean ontop)

abstract void setLocation (int x, int y)

void settings ()

abstract void setTitle (String title)

void setup ()

abstract void setVisible (boolean visible)

abstract boolean usesGL ()


Static Public Member Functions

static GWindow getWindow (PApplet app, String title, int px, int py, int w, int h, String renderer)


Public Attributes

GWinData data

String tag

int tagNo

LinkedList< GAbstractControltoAdd = new LinkedList<GAbstractControl>()

LinkedList< GAbstractControltoRemove = new LinkedList<GAbstractControl>()

LinkedList< GAbstractControlwindowControls = new LinkedList<GAbstractControl>()

- Public Attributes inherited from g4p_controls.GConstants
int ALPHA_BLOCK = 128

int ALPHA_PICK = 48

TextAttribute BACKGROUND = TextAttribute.BACKGROUND

int BLUE_SCHEME = 6

int BOLD = Font.BOLD

int CANCEL = JOptionPane.CANCEL_OPTION

int CLOSE_WINDOW = 0x00000f02

int CLOSED = JOptionPane.CLOSED_OPTION

int CTRL_ANGULAR = 0x00000501

int CTRL_HORIZONTAL = 0x00000502

int CTRL_VERTICAL = 0x00000503

int CYAN_SCHEME = 5

int DECIMAL = 1

char END = java.awt.event.KeyEvent.VK_END

int ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int EXIT_APP = 0x00000f01

int EXPONENT = 2

TextAttribute FAMILY = TextAttribute.FAMILY

TextAttribute FOREGROUND = TextAttribute.FOREGROUND

int FORWARD = 1

int GOLD_SCHEME = 7

int GREEN_SCHEME = 1

int HIDE_WINDOW = 0x00000f04

char HOME = java.awt.event.KeyEvent.VK_HOME

int INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int INTEGER = 0

int ITALIC = Font.ITALIC

int KEEP_OPEN = 0x00000f03

int NO = JOptionPane.NO_OPTION

int OK = JOptionPane.OK_OPTION

int OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int ORANGE_SCHEME = 4

int ORIENT_LEFT = -1

int ORIENT_RIGHT = 1

int ORIENT_TRACK = 0

int PLAIN = Font.PLAIN

int PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute POSTURE = TextAttribute.POSTURE

Float POSTURE_OBLIQUE = new Float(0.20f)

Float POSTURE_REGULAR = new Float(0.0f)

int PURPLE_SCHEME = 3

int QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int RED_SCHEME = 0

int REVERSE = -1

int SCHEME_10 = 10

int SCHEME_11 = 11

int SCHEME_12 = 12

int SCHEME_13 = 13

int SCHEME_14 = 14

int SCHEME_15 = 15

int SCHEME_8 = 8

int SCHEME_9 = 9

int SCROLLBARS_AUTOHIDE = 0x1000

int SCROLLBARS_BOTH = 0x0003

int SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int SCROLLBARS_NONE = 0x0000

int SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute SIZE = TextAttribute.SIZE

TextAttribute STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean STRIKETHROUGH_OFF = new Boolean(false)

Boolean STRIKETHROUGH_ON = new Boolean(true)

TextAttribute SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer SUPERSCRIPT_OFF = new Integer(0)

Integer SUPERSCRIPT_SUB = new Integer(-1)

Integer SUPERSCRIPT_SUPER = new Integer(1)

int UNDEFINED = Integer.MAX_VALUE

TextAttribute UNDERLINE = TextAttribute.UNDERLINE

int UNDERLINE_OFF = Integer.valueOf(-1)

int UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int USER_COL_SCHEME = 0x00010102

int WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute WEIGHT = TextAttribute.WEIGHT

Float WEIGHT_BOLD = new Float(2.0f)

Float WEIGHT_DEMIBOLD = new Float(1.75f)

Float WEIGHT_DEMILIGHT = new Float(0.875f)

Float WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float WEIGHT_EXTRABOLD = new Float(2.5f)

Float WEIGHT_HEAVY = new Float(2.25f)

Float WEIGHT_LIGHT = new Float(0.75f)

Float WEIGHT_MEDIUM = new Float(1.5f)

Float WEIGHT_REGULAR = new Float(1.0f)

Float WEIGHT_SEMIBOLD = new Float(1.25f)

Float WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute WIDTH = TextAttribute.WIDTH

Float WIDTH_CONDENSED = new Float(0.75f)

Float WIDTH_EXTENDED = new Float(1.5f)

Float WIDTH_REGULAR = new Float(1.0f)

Float WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float WIDTH_SEMI_EXTENDED = new Float(1.25f)

int X4 = 1

int X8 = 2

int YELLOW_SCHEME = 2

int YES = JOptionPane.YES_OPTION

int YES_NO = JOptionPane.YES_NO_OPTION

int YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION


Protected Member Functions

void addToWindow (GAbstractControl control)

abstract void fireCloseWindowEvent ()

 GWindow (String title, int w, int h)

abstract void initListeners ()

void prepareWindowForClosure ()

void registerMethods ()

void removeFromWindow (GAbstractControl control)

void unregisterMethods ()


Protected Attributes

int actionOnClose = KEEP_OPEN

String closeHandlerMethodName

Object closeHandlerObject = null

Method closetHandlerMethod = null

Method drawHandlerMethod = null

String drawHandlerMethodName

Object drawHandlerObject = null

int h

boolean is3D = false

Method keyHandlerMethod = null

String keyHandlerMethodName

Object keyHandlerObject = null

Method mouseHandlerMethod = null

String mouseHandlerMethodName

Object mouseHandlerObject = null

Method postHandlerMethod = null

String postHandlerMethodName

Object postHandlerObject = null

Method preHandlerMethod = null

String preHandlerMethodName

Object preHandlerObject = null

boolean preparedForClosure = false

String renderer_type

String title

int w


Detailed Description

Base class for independent windows using JAVA2D, P2D or P3D renderers. These can be used to hold G4P GUI components or used for drawing or both combined.

A number of examples are included in the library and more info can be found at www.lagers.org.uk

Updated for Processing V3

Author
Peter Lager

Member Function Documentation

◆ addData()

void g4p_controls.GWindow.addData ( GWinData  data)

To provide a unique fields for this window create a class that inherits from GWinData with public access fields. Then use this method to associate the data with this window.

Parameters
datathe GWinData object associated with this window

◆ addDrawHandler()

void g4p_controls.GWindow.addDrawHandler ( Object  obj,
String  methodName
)

Attempt to add the 'draw' handler method. The default event handler is a method that returns void and has two parameters PApplet and GWinData

Parameters
objthe object to handle the event
methodNamethe method to execute in the object handler class

◆ addKeyHandler()

void g4p_controls.GWindow.addKeyHandler ( Object  obj,
String  methodName
)

Attempt to add the 'key' handler method. The default event handler is a method that returns void and has three parameters GWinApplet, GWinData and a KeyEvent

Parameters
objthe object to handle the event
methodNamethe method to execute in the object handler class

◆ addMouseHandler()

void g4p_controls.GWindow.addMouseHandler ( Object  obj,
String  methodName
)

Attempt to add the 'mouse' handler method. The default event handler is a method that returns void and has three parameters GWinApplet, GWinData and a MouseEvent

Parameters
objthe object to handle the event
methodNamethe method to execute in the object handler class

◆ addOnCloseHandler()

void g4p_controls.GWindow.addOnCloseHandler ( Object  obj,
String  methodName
)

Attempt to create the on-close-window event handler for this GWindow. The default event handler is a method that returns void and has a single parameter of type GWindow (this will be a reference to the window that is closing)

The handler will not be called if the setActionOnClose flag is set to EXIT_APP
If the flag is set to CLOSE_WINDOW then the handler is called when the window is closed by clicking on the window-close-icon or using either the close or forceClose methods.
If the flag is set to KEEP_OPEN the window can only be closed using the forceClose method. In this case the handler will be called.

Parameters
objthe object to handle the on-close-window event
methodNamethe method to execute in the object handler class

◆ addPostHandler()

void g4p_controls.GWindow.addPostHandler ( Object  obj,
String  methodName
)

Attempt to add the 'post' handler method. The default event handler is a method that returns void and has two parameters GWinApplet and GWinData

Parameters
objthe object to handle the event
methodNamethe method to execute in the object handler class

◆ addPreHandler()

void g4p_controls.GWindow.addPreHandler ( Object  obj,
String  methodName
)

Attempt to add the 'pre' handler method. The default event handler is a method that returns void and has two parameters GWinApplet and GWinData

Parameters
objthe object to handle the event
methodNamethe method to execute in the object handler class

◆ addToWindow()

void g4p_controls.GWindow.addToWindow ( GAbstractControl  control)
protected

Add a control to this window, ignoring duplicates.

Parameters
controlcontrol to be added

◆ close()

void g4p_controls.GWindow.close ( )

This will close the window provided the action-on-close flag is CLOSE_WINDOW otherwise the window remains open.

◆ draw()

void g4p_controls.GWindow.draw ( )

Execute any draw handler for this window.

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ fireCloseWindowEvent()

abstract void g4p_controls.GWindow.fireCloseWindowEvent ( )
abstractprotected

Fire a window closing event

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ forceClose()

void g4p_controls.GWindow.forceClose ( )

This will close the window provided the action-on-close flag is CLOSE_WINDOW or KEEP_OPEN otherwise the window remains open.

◆ getPosition()

abstract PVector g4p_controls.GWindow.getPosition ( PVector  pos)
abstract
Parameters
posthe PVector to populate
Returns
a PVector with the windows top-left coordinates.

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ getTitle()

abstract String g4p_controls.GWindow.getTitle ( )
abstract
Returns
the window's title bar text

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ getWindow()

static GWindow g4p_controls.GWindow.getWindow ( PApplet  app,
String  title,
int  px,
int  py,
int  w,
int  h,
String  renderer
)
static

Factory method to create and start a new window. The renderer must be JAVA2D, P2D or P3D otherwise this method returns null.

Parameters
appthe main sketch window PApplet instance ('this')
titletext to appear in frame title bar
pxhorizontal position of top-left corner
pyvertical position of top-left corner
wwidth of drawing surface
hheight of surface
rendererrenderer must be JAVA2D, P3D or P3D
Returns
the window created (use this to get a handle on your window)

◆ initListeners()

abstract void g4p_controls.GWindow.initListeners ( )
abstractprotected

Set up the 'window' listeners

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ isVisible()

abstract boolean g4p_controls.GWindow.isVisible ( )
abstract
Returns
true if this window is visible else false

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ keyEvent()

void g4p_controls.GWindow.keyEvent ( KeyEvent  event)

Execute any key event handler associated with this window and its controls

Parameters
eventthe key event to process

Reimplemented in g4p_controls.GWindowNEWT.

◆ mouseEvent()

void g4p_controls.GWindow.mouseEvent ( MouseEvent  event)

Execute any mouse event handler associated with this window and its controls

Parameters
eventthe mouse event to process

◆ performCloseAction()

void g4p_controls.GWindow.performCloseAction ( )

This method is executed when the window closes. It will call the user defined on-close-handler method set with

◆ post()

void g4p_controls.GWindow.post ( )

Execute any post handler associated with this window and its controls.
Add/remove any controls request by user, this is done here outside the drawing phase to prevent crashes.

◆ pre()

void g4p_controls.GWindow.pre ( )

Execute any pre handler associated with this window and its controls

◆ prepareWindowForClosure()

void g4p_controls.GWindow.prepareWindowForClosure ( )
protected

Prepare the window for closure by stopping the animation loop, unregistering the event handlers and firing a window close event using a new thread.

◆ registerMethods()

void g4p_controls.GWindow.registerMethods ( )
protected

Register this window for pre, draw, post, mouseEvent and keyEvent methods.

◆ removeFromWindow()

void g4p_controls.GWindow.removeFromWindow ( GAbstractControl  control)
protected

Remove a control to this window.

Parameters
controlcontrol to be removed

◆ setActionOnClose()

abstract void g4p_controls.GWindow.setActionOnClose ( int  action)
abstract

This sets what happens when the users attempts to close the window.
There are 3 possible actions depending on the value passed.
G4P.KEEP_OPEN - ignore attempt to close window (default action),
G4P.CLOSE_WINDOW - close this window,
G4P.EXIT_APP - exit the app, this will cause all windows to close.

Parameters
actionthe required close action

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ setAlwaysOnTop()

abstract void g4p_controls.GWindow.setAlwaysOnTop ( boolean  ontop)
abstract

Sets whether this window should always be above other windows. If there are multiple always-on-top windows, their relative order is unspecified and platform dependent.

Parameters
ontopif true the window will always remain above other windows

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ setLocation()

abstract void g4p_controls.GWindow.setLocation ( int  x,
int  y
)
abstract

Set the windows position

Parameters
xhorizontal position of window
yvertical position of window

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ setTitle()

abstract void g4p_controls.GWindow.setTitle ( String  title)
abstract

Set the window title

Parameters
titlethe window's title bar text

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ setVisible()

abstract void g4p_controls.GWindow.setVisible ( boolean  visible)
abstract

Set the windows visibility

Parameters
visiblewhether the window is to be visible or not

Reimplemented in g4p_controls.GWindowAWT, and g4p_controls.GWindowNEWT.

◆ unregisterMethods()

void g4p_controls.GWindow.unregisterMethods ( )
protected

Unregister this window for pre, draw, post, mouseEvent and keyEvent methods. This method is called when the window closes.

◆ usesGL()

abstract boolean g4p_controls.GWindow.usesGL ( )
abstract

Member Data Documentation

◆ closeHandlerMethodName

String g4p_controls.GWindow.closeHandlerMethodName
protected

the name of the method to handle the event

◆ closeHandlerObject

Object g4p_controls.GWindow.closeHandlerObject = null
protected

The object to handle the window closing event

◆ closetHandlerMethod

Method g4p_controls.GWindow.closetHandlerMethod = null
protected

The method in closeHandlerObject to execute

◆ data

GWinData g4p_controls.GWindow.data

Used to associated data to a GWindow

◆ drawHandlerMethod

Method g4p_controls.GWindow.drawHandlerMethod = null
protected

The method in drawHandlerObject to execute

◆ drawHandlerMethodName

String g4p_controls.GWindow.drawHandlerMethodName
protected

the name of the method to handle the event

◆ drawHandlerObject

Object g4p_controls.GWindow.drawHandlerObject = null
protected

The object to handle the draw event

◆ keyHandlerMethod

Method g4p_controls.GWindow.keyHandlerMethod = null
protected

The method in keyHandlerObject to execute

◆ keyHandlerMethodName

String g4p_controls.GWindow.keyHandlerMethodName
protected

the name of the method to handle the event

◆ keyHandlerObject

Object g4p_controls.GWindow.keyHandlerObject = null
protected

The object to handle the key event

◆ mouseHandlerMethod

Method g4p_controls.GWindow.mouseHandlerMethod = null
protected

The method in mouseHandlerObject to execute

◆ mouseHandlerMethodName

String g4p_controls.GWindow.mouseHandlerMethodName
protected

the name of the method to handle the event

◆ mouseHandlerObject

Object g4p_controls.GWindow.mouseHandlerObject = null
protected

The object to handle the mouse event

◆ postHandlerMethod

Method g4p_controls.GWindow.postHandlerMethod = null
protected

The method in postHandlerObject to execute

◆ postHandlerMethodName

String g4p_controls.GWindow.postHandlerMethodName
protected

the name of the method to handle the event

◆ postHandlerObject

Object g4p_controls.GWindow.postHandlerObject = null
protected

The object to handle the post event

◆ preHandlerMethod

Method g4p_controls.GWindow.preHandlerMethod = null
protected

The method in preHandlerObject to execute

◆ preHandlerMethodName

String g4p_controls.GWindow.preHandlerMethodName
protected

the name of the method to handle the event

◆ preHandlerObject

Object g4p_controls.GWindow.preHandlerObject = null
protected

The object to handle the pre event

◆ tag

String g4p_controls.GWindow.tag

Simple tag that can be used by the user

◆ tagNo

int g4p_controls.GWindow.tagNo

Allows user to specify a number for this component
